GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables

Name: GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables
Brand: Changshu Xinya Machinery Manufacturing Co., Ltd.
SKU: GSS-3Z
Price: 1,500.00 USD
Availability: InStock

Markenname:	XINYA
Modellnummer:	GSS-3Z
MOQ:	1
Preis:	USD1000-USD2000
Lieferzeit:	7-15 Tage
Zahlungsbedingungen:	L/C, T/T, Western Union

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

Jiangsu, China

Ziehen ziehen:

7000N

Kabeldurchmesser:

10-180mm

Ziehgeschwindigkeit:

0 bis 26 m/min

Elektromotor:

1,8 kW

Übergroße Dimension:

950 × 600 × 600 mm

Gewicht:

140 Kilogramm

Klemme:

Nicht mehr als 2,7 Kn

Modell:

GSS-2ZC

Verpackung Informationen:

Holzkoffer

Hervorheben:

7000N diesel cable puller

cable winch puller for 10-180mm cables

GSS-2ZC diesel winch with warranty

Produktbeschreibung

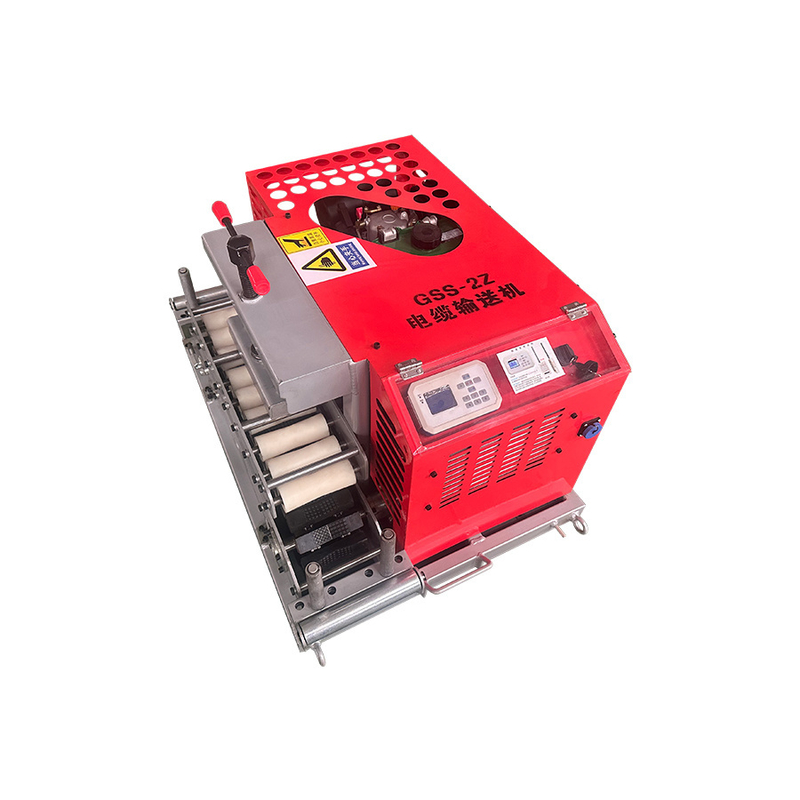

GSS-2ZC Diesel Engine Cable Pulling Machine

7000N Capacity for 10-180mm Cables

Product Description

The GSS-2ZC Diesel Engine Cable Pulling Machine is engineered for efficient cable installation in demanding environments. Its robust construction and intelligent features make it ideal for cable rows, tunnels, and long-distance transportation applications.

Key Components

Frame, motor, reducer, and high-strength track system
Wear-resistant tire rubber compound track for uniform cable force distribution
Integrated controller with remote operation capability (>800m range)
Modular design supports single or multiple unit operation

Key Advantages

Enhanced Speed Design: 35 meters/min maximum speed (adjustable) reduces construction time by 30%
Rapid Deployment: Plug-and-play functionality for emergency engineering needs
Precision Control: Digital inverter enables stepless speed regulation with seamless mode switching
Multi-Machine Synchronization: Coordinated speed regulation maintains tension balance during long-distance laying
Advanced Conveying Module: Bidirectional operation with non-slip bump design for complex path adaptation

Product Overview

Double-track transmission system ensures stable traction across cable specifications
Wear-resistant rubber conveyor belt/track with superior grip surface
Modular design supports ultra-long distance installations

Technical Specifications

Item	Value
Model	GSS-2ZC
Power	Electric engine 1.8KW
Cable Diameter	10-180mm
Dimension	950×600×600mm
Pulling Speed	0-26m/min
Clamp	≤2.7KN
Pulling Force	6KN
Weight	140kg
